16ports SC APC Fiber Optic Termination Cabinet SGS FATM-0416M-B

16ports SC APC Fiber Optic Termination Cabinet SGS FATM-0416M-B

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: Fiber Access Terminal FATM-0416M-B Black Color Box

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/Carton
Delivery Time: 3-5days
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Reinforced Adapter: 16pcs SC/UPC Or 16pcs SC/APC Port: 16 Ports
IP Protection Level: IP65 Protection Level Fiber: 120 Fibers
Quality Control: 100% Test Before Shipping Splitter: 1*8 Or 1*16 Splitter Can Be Installed
High Light:

SC APC Fiber Optic Termination Cabinet

,

16ports Fiber Optic Termination Cabinet

,

SGS Optical Fiber Junction Box

Product Description

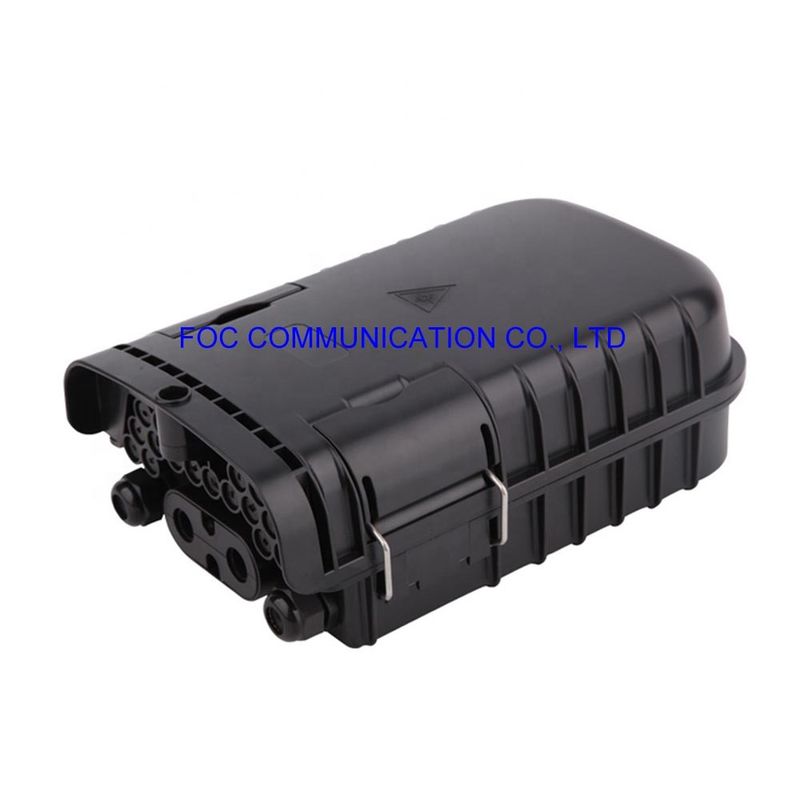

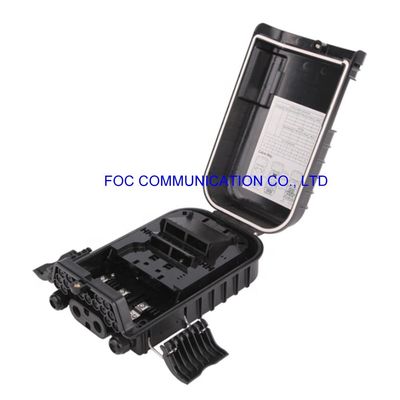

Fiber Access Termination Box FATM-0416M-B Black Color Box Fully Loaded With two-steps 1*16 PLC Splitter SC/APC



Fiber access termination box FATM-0416M-B is able to hold up to 16 subscribers and 96 splicing points as closure. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. Black color box or grey color box can be chosen.



Features● Water-proof design with IP-65 Protection level.
● Stainless anti-rust bolts and nuts.
● Easy for maintenance and expansion.
Integrated with flap-up splice cassette and adapter holder.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splicer or mechnical splice
● 180 degree access wih buckled lock structure.
● 1pcs of 1*16 Splitter can be installed as option.
● Mechnical sealing structure and mid-span cable entry.
● 16 pcs of pre-installed reinforced water-proof adapter for SC.

Configuration
Fiber Access Terminal FATM-0416M-B Parameter
Material
Size
Max Capacity
Reinforced Adapter
Weight
Color
PC+ABS
AxBxC(mm)
Splice 96 Fibers
PLC splittter
16pcs SC/UPC
1.85kg
Grey/Black
287x172x102
4 trays x 24fiber/tray
1pcs of 1x16(SC)
or 16pcs SC/APC

Application
● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for Huawei pre-connectorized drop cable with reinforced connector.

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.



Optional Accessories
Pole mounted kits
