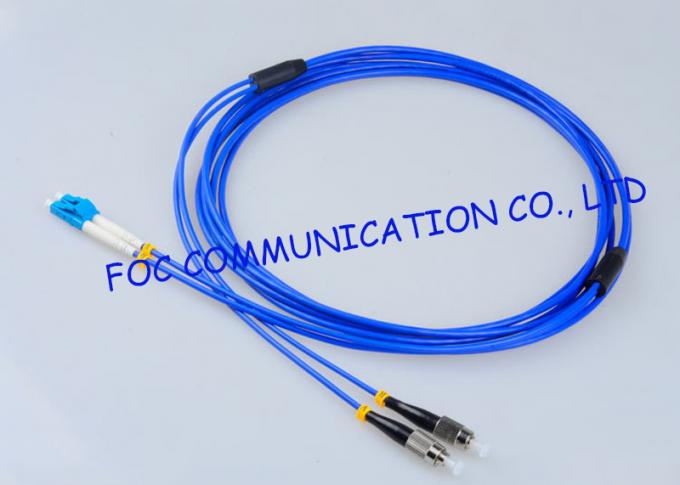

• Armored Fiber Optic Patch Cord Assemblies LC - FC G.657A Bending Resistance
Armored Fiber Optic Patch Cord Assemblies LC - FC G.657A Bending Resistance

Armored Fiber Optic Patch Cord Assemblies LC - FC G.657A Bending Resistance

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: Armored LC/UPC-FC/UPC SM Duplex Fiber Optical Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Get Best Price Contact Now

Detail Information

Fiber Type: SM, G.657A Cable Material: LSZH
Cable Diameter: 3.0mm Connector: LC/UPC
Cores: Duplex Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

simplex fiber patch cord

,

multimode fiber optic cable

Product Description

Armored Fiber Optic Assemblies LC - FC G.657A Bending Resistance

Armored fiber optic assemblies available in a variety of configurations including OS2, OM1, OM2, OM3, and OM4 along with common connectors such as the LC, SC, FC, and ST these fiber cables are the perfect addition to any fiber network in hazardous environments. MTP, MTP Elite, and MPO also available in straight and breakout permutations.



These rugged fiber optic assemblies allow for optical fiber to be installed even in the most hazardous of areas including environments with excessive dust, oil, gas, moisture, or even damage causing rodents. These steel jackets provide unparalleled protection against physical damage without sacrificing flexibility or functionality within fiber networks.



The armored cables feature an exclusive mechanism comprised of a steel metal tube that is locked into position by overlapping links. This composition results in an unmatched rugged, but light weight cable that provides maximum flexibility.



Features

LC-LC armored fiber optic patch cord

Ideal for 10G/100G networks

Without damage by construction

High resistance of tensile strength, pressure, rodent bite

Ensure transmission power and avoid additional attenuation

Prevent optic fiber from destroy by harsh environment and improper operation



Application

Telecommunications and data trunk

Long haul networking

Building interconnections

Harsh environments, where a traditional fiber optic patch cable may fail

Applications requiring moisture, weather resistance



Specifications

Connector Type SC, LC, FC, ST, MTRJ
Endface Type(nm) PC UPC APC
Insertion Loss(dB) ≤0.30 ≤0.30 ≤0.30
Repeatability(dB) ≤0.10
Exchangeability(dB) ≤0.20
Return Loss(dB) ≥45 ≥50 ≥60
Fiber Type SM, MM
Operation Temperature(℃) -25℃~ +70℃
Storage Temperature(℃) -40℃~ +85℃
Durability(time) >1000 times
Industry Standard Telcordia GR-326-CORE
