• ODVA Connector IP67 Waterproof For FTTA , Chemical Resistance
ODVA Connector IP67 Waterproof For FTTA , Chemical Resistance

ODVA Connector IP67 Waterproof For FTTA , Chemical Resistance

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: ODVA Connector LC Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Get Best Price Contact Now

Detail Information

Fiber Type: G.652D, G.657A Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 2.0mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

simplex fiber patch cord

,

multimode fiber optic cable

Product Description

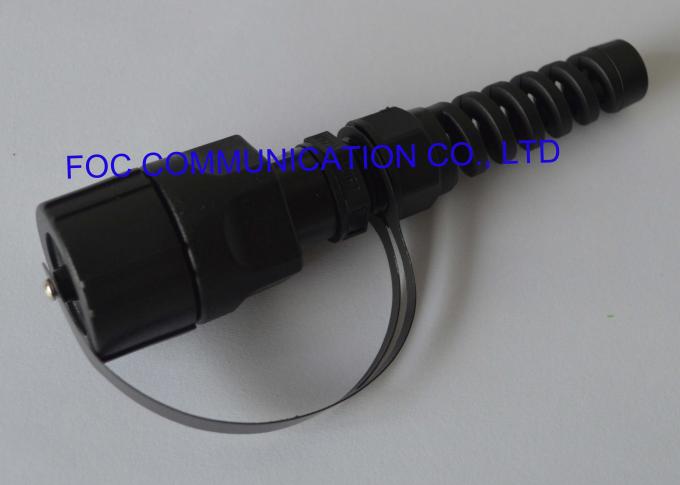

ODVA Connector IP67 Waterproof For FTTA , Chemical Resistance



ODVA patch cords are applicable in singlemode and multimode with custom cable. They are used in FTTA, industrial, military, and many similar indoor/ outdoor harsh environments. ODVA LC fiber patch cables are duplex type cables, the connector features its spring loaded metal protection shutter and high precision fiber ferrules.



ODVA optical fiber cables can meet IP67 Water immersion and Dust protection for hash environment. It is wide range of operational temperature for outside plant -40℃/+70℃. And the wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits, chemical resistance.



FOC COMMUNICATION CO., LTD offers ODVA-LC patch cords, ODVA-SC patch cord, ODVA-MPO patch cords as per customer requests, length from 1Meter to 500Meters.


Specifications

Outside Cable Diameter 7.0mm
Flammability Rating OFNR (Riser) Jacket
Cost effective solution for in house termination
Intermatable to other Industrial LC adaptor per IEC 61076-3-106
Simple assembly requiring no special tools
Durable mechanical mating, minimum of 500 matings

Rugged IP67 rated enclosure
Exceptional optical performance in a high density LC standard compliant connector.

Integrated caps on the connectors and shutters in the couplers provide both laser eye safety and end face protection during mating/demating
Bayonet-style self-aligning, keyed housing
Ease of use in all mating situations
Cable Type OFNR
Multimode and Singlemode
Ferrule Material Zirconia



Technical Data

Parameter Unit LC duplex LC duplex LC duplex LC duplex
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion Loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Repeatability dB ≤0.1
Durability dB ≤0.2dB typical change, 1000 matings
Operating temperature ºC -20 ~ +75
Storage temperature ºC -40 ~ +85



ODVA Connector IP67 Waterproof For FTTA , Chemical Resistance 0

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
