• ABS Plastic Optical Fiber Distribution Cabinet 4 Fiber With Indoor Mounted
ABS Plastic Optical Fiber Distribution Cabinet 4 Fiber With Indoor Mounted

ABS Plastic Optical Fiber Distribution Cabinet 4 Fiber With Indoor Mounted

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-C04-D

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Get Best Price Contact Now

Detail Information

Mount Type: Wall Mount, Pole Mount Material: ABS Plastic
Port: 2, 4, 6, 8, 12, 24, 32, 48, 72, 96 Port Connector: SC, FC, LC, ST, E2000
High Light:

cable termination box

,

network termination box

Product Description

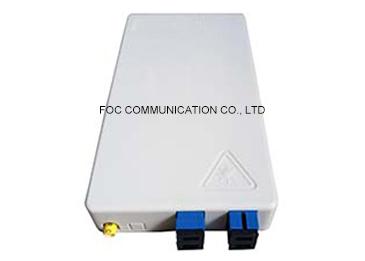

Fiber Termination Box 4 Core For Fiber Network Terminal Distribution Indoor Mounted



Fiber optic terminal box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



This fiber optic termination box offers the possibility to manage the splicing and the connection of four fibers via 4pcs SC simplex adapters, this capacity can be doubled with the use of LC duplex adapters. It is equipped with a splice area where the splices can be housed in total safety and the fibers can be orderly managed.



Features

Material: ABS plastic

Small, light weight and reasonable enclosed structure.

Used for fiber splicing, fixation, storage, distribution…etc.

Suitable for SC, LC, FC, ST ... etc. adapters

Indoor wall mounted application.



Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV



Specifications

Working Temperature: -40℃~+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)



Description OTB-C04-D
Dimensions(W×D×H) 165.73x90x24.1mm
Adapter port 4pc SC simplex
Splice capacity Max. 4 fiber
Cable port 4pc FTTH drop cable port
Max. capacity of splitter Can load 1pc PLC 1:4 steel tube type splitter
Color White
Main body material Plastic(ABS)
Installation type Indoor wall mounting



ABS Plastic Optical Fiber Distribution Cabinet 4 Fiber With Indoor Mounted 0



Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box
