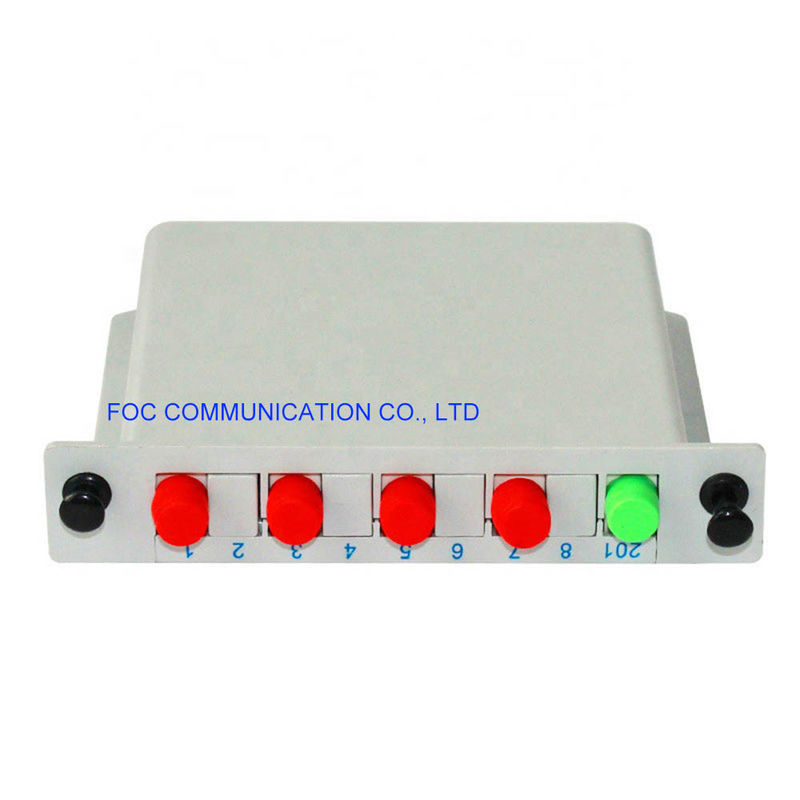

ISO 1×4 FC UPC Fiber PLC Splitter Cassette DWDM CWDM Fiber Splitter Box

ISO 1×4 FC UPC Fiber PLC Splitter Cassette DWDM CWDM Fiber Splitter Box

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certification and RoHS Compliant
Model Number: 1×4 PLC Splitter Cassette Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1pcs/carton box
Payment Terms: Western Union, T/T
Supply Ability: 90000PCS/MONTH
Get Best Price Contact Now

Detail Information

Port: 1*4 PLC Splitter Package: Box Type PLC Splitter
Connector: SC/UPC Wavelength: 1260-1650nm
Material: Connector,LSZH Splitter: Modular PLC Splitter
High Light:

FC UPC Fiber PLC Splitter

,

ISO 1×4 Fiber PLC Splitter

,

DWDM CWDM Fiber Splitter Box

Product Description

Fiber PLC Splitter Cassette Type SC / APC , 1×4 High Reliability and Stability



Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available mini tube type PLC splitter, fan-out PLC splitter, module PLC splitter, cassette type PLC splitter or rack mount PLC splitter.

Cassette type: installed in 19 inch standard rack; in fiber branch home, installation device is provided in the optical fiber cable transfer box; branch home, installed customer specified equipment.


Features
Low insertion loss

High maximum power tolerance
Excellent splitting uniformity
Broadband Operating wavelength
Compact design
Low polarization independent


Applications

PON- FTTX Networks

CATV

Outside Plant Equipments

DWDM and CWDM systems

Optical Specifications

Parameter Unit Specification (P Grade)
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 4.3 7.4 10.7 13.9 17.2 21.5
Uniformity (Max.) dB 0.5 0.8 1.0 1.4 1.6 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Storage Temperature -40~+85



Parameter Unit Specification (P Grade)
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Operation Wavelength nm 1260~1650
Insertion Loss (Max.) dB 4.3 7.6 11.0 14.8 17.9 21.5
Uniformity (Max.) dB 0.8 1.0 1.2 1.5 1.8 2.0
Polarization Dependent Loss dB 0.2 0.3 0.3 0.3 0.3 0.5
Return Loss dB ≥50
Directivity dB ≥50
Operating Temperature -40~+85
Storage Temperature -40~+85

Note: All the data above does not include connectors.
ISO 1×4 FC UPC Fiber PLC Splitter Cassette DWDM CWDM Fiber Splitter Box 0
Ordering Information

PLC















Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64

1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5-2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others
