• E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks
E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks

E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: E2000/APC SM Fiber Optic Patch Cord Simplex

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Get Best Price Contact Now

Detail Information

Fiber Type: SM, OM1, OM2, OM3, OM4 Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

simplex fiber patch cord

,

fiber optic jumper

Product Description

E2000 APC Fiber Optic Patch Cord Customized For FTTX



E2000 fiber optic patch cord is with low Insertion Loss and high Return Loss. The patch cable contacting different connector or interface is called single mode patch cable. We apply the advanced technology and equipment to large-scale produce, producing the products of superior performance and reliable quality.

1.All ceramic ferrules for maximum optical and mechanical performance.

2.All patch cords are 100% optically inspected and tested individually.

3.A variety of fiber and cable types available

4.A variety of boot styles and colors available.

5.Custom print length and jacket colors available

Features:
Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability


Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

PC

APC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310, 1510

1310, 1510

1310, 1510

1310, 1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable diameter

mm

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9

φ3.0, φ2.0, φ0.9



Order   Ordering information

Interface

Connector

Length

OD

Color of jacket

Jacket

Fiber Type

Cores

P-PC

FC-FC

1M

0.9mm

B-Black

P-PVC

SM

Simplex

U-UPC

SC-SC

3M

1.6mm

Y-Yellow

L-LSZH

MM 50/125um

Duplex

A-APC

LC-LC

5M

1.8mm

W-White

OFNR

MM 62.5/125um

4cores



ST-ST

10M

2.0mm

Customized

OFNP

MM OM3

6cores



MU-MU

Customized

3.0mm



Customized

MM OM4

8cores



MTRJ-MTRJ



Customized







12cores



E2000-E2000











24cores



DIN











Customized



Customized

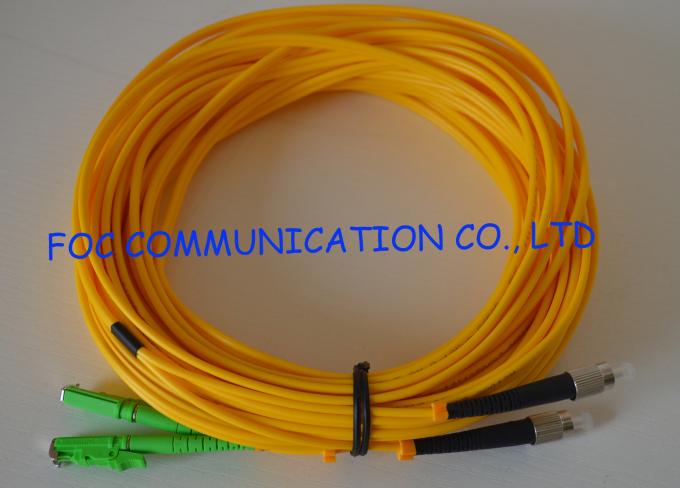

E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks 0

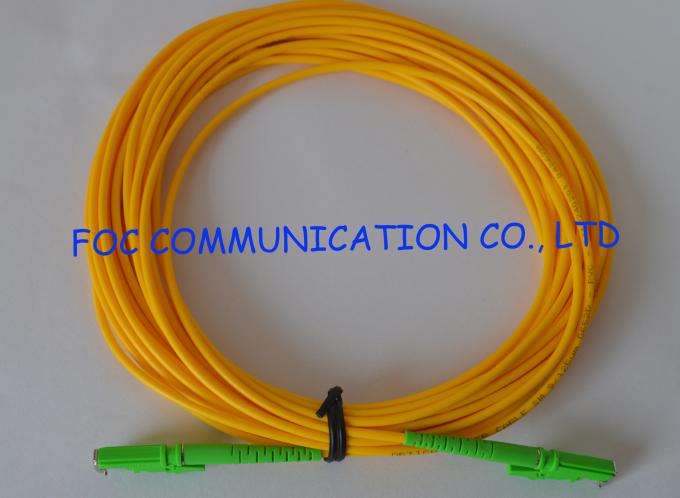

E2000 Fiber Optic Patch Cord SM G.652D Fiber Simplex 3.0mm For Telecom Networks 1
