• Fiber Optic Adapter MPO / MTP Black Key-Up To Key-Down Black With Dust Cap
Fiber Optic Adapter MPO / MTP Black Key-Up To Key-Down Black With Dust Cap

Fiber Optic Adapter MPO / MTP Black Key-Up To Key-Down Black With Dust Cap

รายละเอียดสินค้า:

Place of Origin: China
ชื่อแบรนด์: FOCABLE
ได้รับการรับรอง: RoHS Compliant, ISO Certificate
Model Number: MPO Fiber Optic Adapter

การชำระเงิน:

Minimum Order Quantity: 100PCS
Packaging Details: 50PCS/Blister Box
Supply Ability: 90000PCS/Month
ราคาถูกที่สุด ติดต่อ

ข้อมูลรายละเอียด

Sleeve material: Zirconia Ceramic Sleeve Adapter: MPO
Cores: Simplex Material: Plastic
Cap Color: Black Mode: Singlemode, Multimode
แสงสูง:

fiber optic adaptor

,

fiber optic connector adapters

รายละเอียดสินค้า

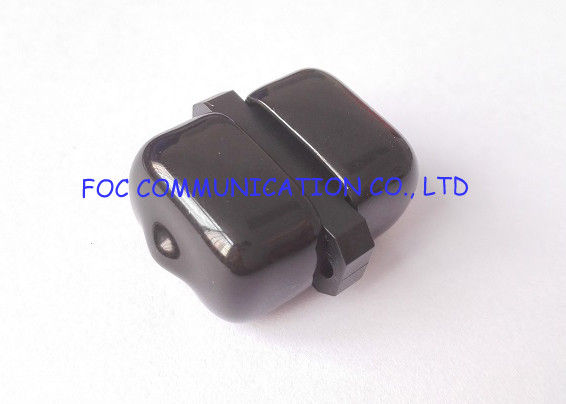

Fiber Optic Adapter MPO/MTP Black Key-up to Key-down Black With Dust Cap



MPO adapters are used to mate the high density MPO/MTP connectors.

Made in both die-cast and thermoplastics, MPO adapters are precision manufactured to ensure intermateability with industry standard assemblies and connectors.

Available with various flange styles, MPO adapters meet the challenges and mechanical requirements of highly dense system designs while maintaining industry standard footprints.



MTP/MPO fiber optic adapter enable quick and easy connections of single-mode and multimode fibers.Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. There are many kinds of fiber optic adapters, including MTP/MPO, FC, SC, LC, MU, ST, and MTRJ. With its simple to use locking thread mechanism preventing accidental disconnection, this provides a very secure connection.



Features

  • Economical in both design and termination process
  • Comply Telcordia IEC61754-7-2004,TIA/EIA,GR326,RoHS standards
  • Reduces maintenance and creates consistent optical performance
  • Flange type for options.
  • Key orientation for options.·
  • High precision mating structure and accurate external size
  • Excellent changeability and directivity
  • Good durability
  • High temperature stability
  • Good repeatability



Specifications

  • Insertion Loss: ≤0.2dB
  • Return Loss: ≥45dB
  • Mating Durability: ≤0.2dB typical change, 1000 times
  • Operating Temperature: -40 ~ +75
  • Storage Temperature: -40 ~ +85



Applications

  • Gigabit ethernet
  • Telecommunication networks
  • Metro networks
  • Local Area Networks (LANs)
  • CATV
  • Video
  • Premise installations
  • Industrial, military
  • Multimedia
